24 GHZ LOAN SYSTEMS

24 GHz is the first of the Millimetre Wave bands and is one of the many areas where amateurs innovate. The short wavelengths lend themselves to portable equipment and high antenna gains to achieve remarkable operating ranges. The 24GHz band is the first Primary band above 144 MHz and is available to all UK Intermediate and Full Licensees. In the UK narrowband operation is centred on 24048 MHz within the UK Amateur Primary segment.

The UKuG 24GHz loan systems enable you to get a taster of narrowband DX on 24 GHz.

System-1 Pictures

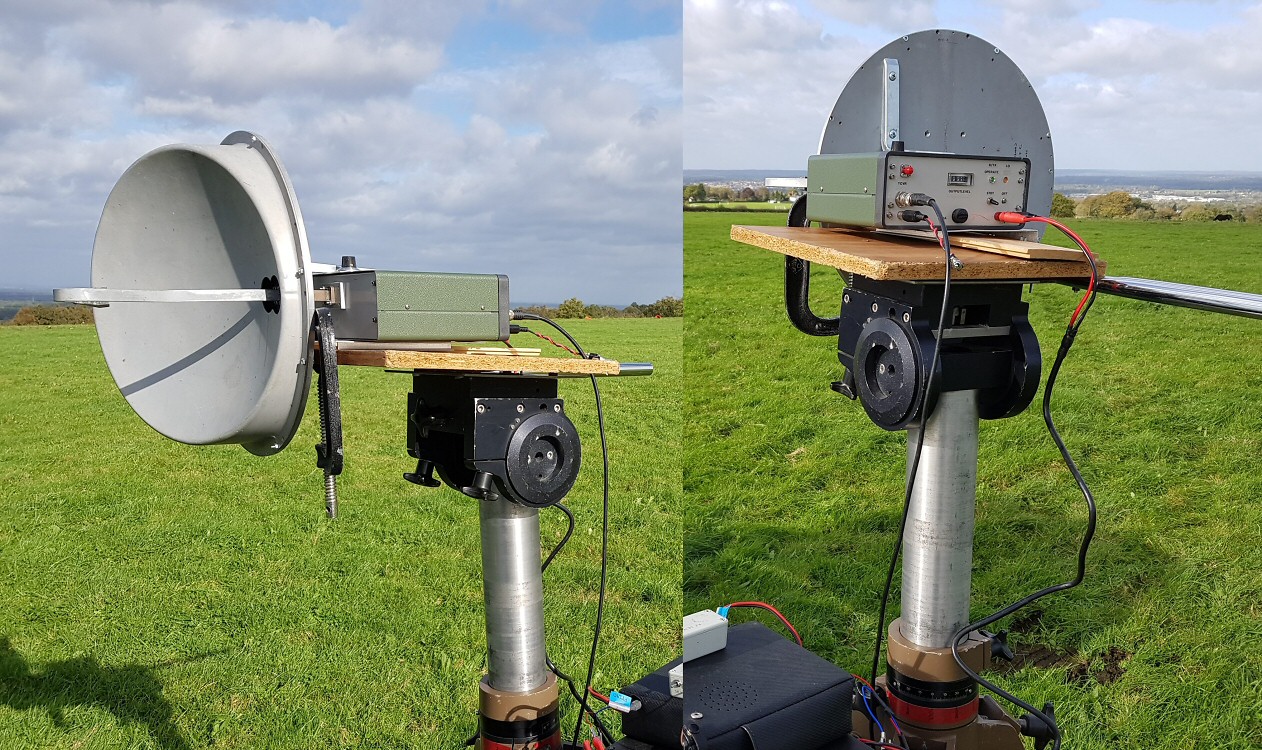

The system consists of a DB6NT 144MHz to 24GHz transverter, an early DB6NT LO and a DB6NT amplifier.

A waveguide switch reverses the amplifier around between transmit and receive.

The dish and feed are believed to be from ex-BT 18GHz equipment.

Around 1W input is needed at 144MHz for full output of around 10mW at 24GHz and the unit is accurate to within a few kHz after a relatively short warm up period.

  • Guidance: Description and Operating Instructions

    Loan Application Form or


    • Note this is available to loan to use in the UK only, due to insurance issues. Loanees must arrange collection and safe return.
    • UKuG reserves the right to ask for the kit to be returned at any time

  • Views of the 24 GHz loan system
    System-2 Pictures

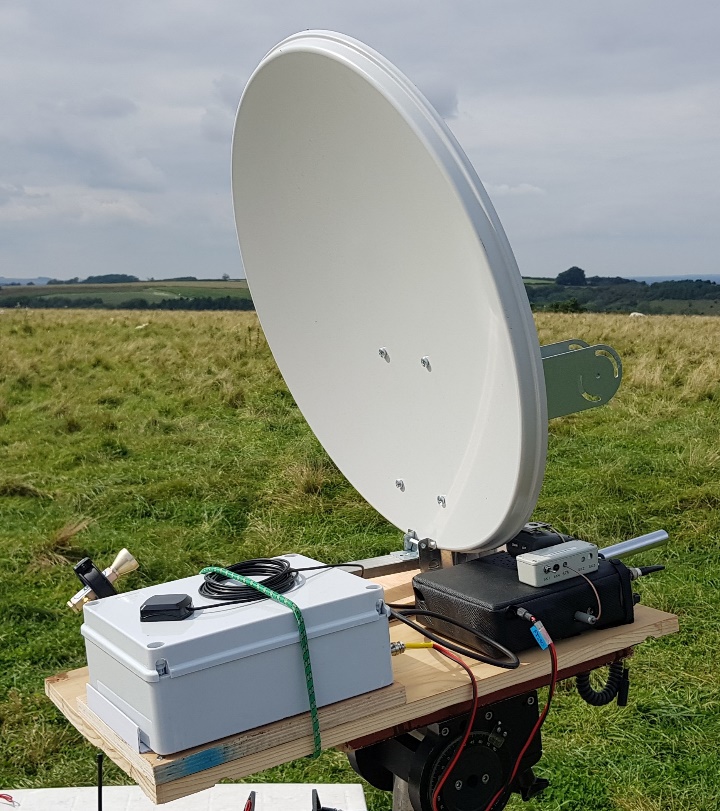

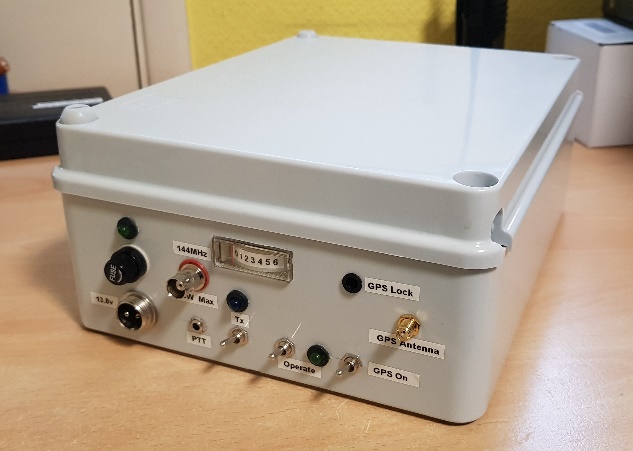

    The transverter is built around the MKU 24 G3, 144 MHz to 24 GHz Kuhne transverter. It is lightweight and intended for tripod mounting along with a suitable antenna.

    As well as the transverter itself the "kit" includes a GPS clock antenna, an I0JXX horn feed for an offset parabolic dish and a suitable 60cm offset dish.

    Around 2.5W maximum drive is needed at 144 MHz for 2W output at 24GHz. A 2m IF of 144.100 MHz corresponds to 24048.100 MHz.

  • Guidance: Description and Operating Instructions


  • Views of the 24 GHz loan system


    Videos

    Video clips of Loan System-1 in use in Oct-2017, courtesy of Barry Lewis G4SJH:-


    Short (15 Secs)


    Longer (30 Secs)

    Video of 24GHz Loan System-2, courtesy of Barry Lewis G4SJH:-
